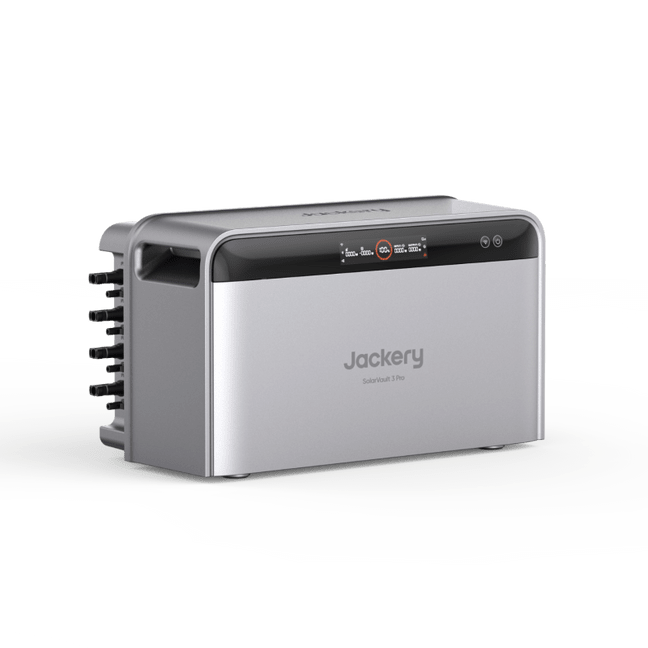

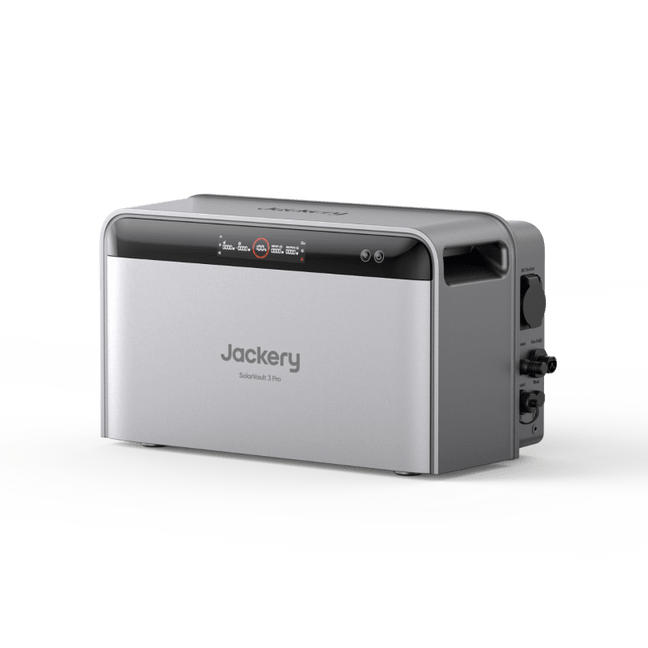

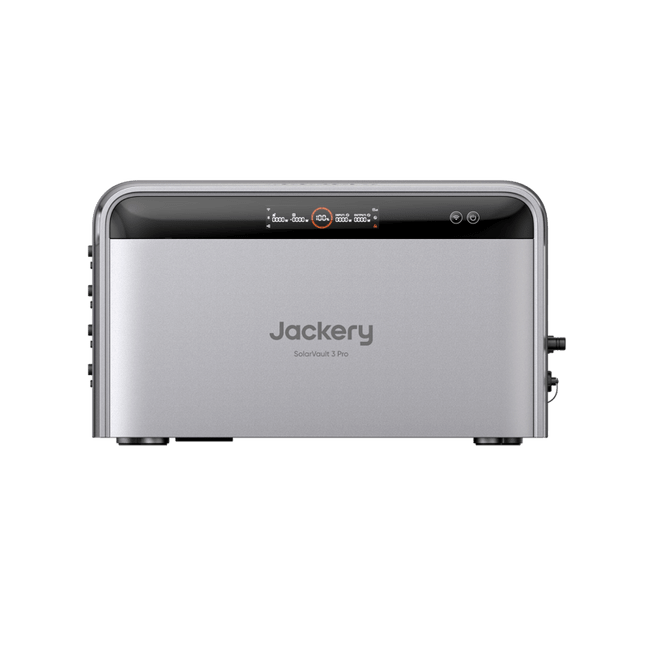

Overview of Jackery SolarVault 3 Pro
The Jackery SolarVault 3 Pro is a next-generation, all-in-one modular solar storage system designed to transform your balcony or rooftop into a high-performance personal power plant. Engineered to meet the energy demands of modern households, it maximizes solar generation from sunrise to sunset. With its plug-and-play design, it offers a hassle-free setup that is perfect for both homeowners and renters looking to harness clean, usable energy. By intelligently storing excess solar power and optimizing your energy consumption, the SolarVault 3 Pro significantly improves self-sufficiency and maximizes your long-term savings.
Key Features & Technologies
The Jackery SolarVault 3 Pro is packed with cutting-edge technology to ensure you get the most out of your solar setup. Here are its unique selling points:
- High PV Input: Accepts up to 4000W of photovoltaic input to generate up to 4,800 kWh of energy per year.
- Four Independent MPPT Trackers: Optimizes solar yield across different panel orientations or partially shaded areas, ensuring maximum efficiency without weak panels bottlenecking the system.
- AI-Powered Energy Management: An intelligent AI system automatically predicts solar production, monitors home consumption, and tracks dynamic electricity tariffs (compatible with platforms like Nordpool and Tibber) to charge when rates are low and discharge during peak times.
- Ultra-Fast Backup: In the event of a power outage, the system switches to backup battery power in less than 20 milliseconds, keeping your essential appliances running without interruption.
- AC Coupling Capable: Supports 1200W AC coupling, allowing you to seamlessly upgrade existing solar installations without replacing your current infrastructure.
- Whisper-Quiet Operation: Operates at a noise level of ≤30 dB, ensuring your home remains peaceful.

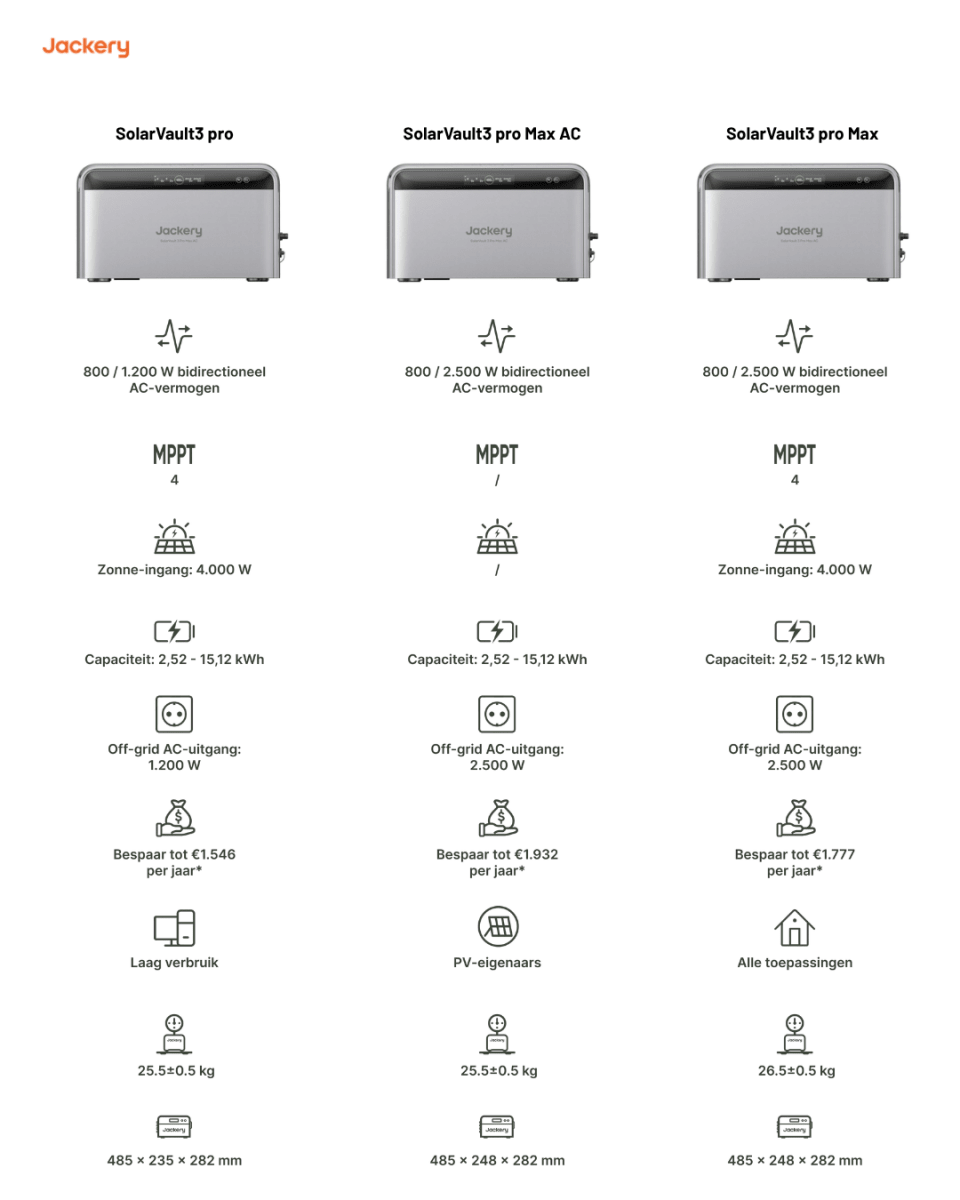

Technical Specifications
Here is a detailed breakdown of the technical capabilities of the Jackery SolarVault 3 Pro:
| Specification | Details |
|---|---|
| Base Battery Capacity | 2.52 kWh (LiFePO4 / LFP chemistry) |
| Maximum Expandable Capacity | 15.12 kWh (supports up to 5 additional battery packs) |
| Maximum PV Input | 4000W |
| On-Grid AC Output | 1200W (Adjustable to 600W/800W for local compliance) |
| Bypass Power | Up to 2300W through the off-grid port |
| MPPT Trackers | 4 Independent Trackers |
| Operating Temperature | -20°C to 55°C |
Design and Build Quality
Designed for all-weather outdoor operation, the Jackery SolarVault 3 Pro is built to last. The unit features an IP65-rating, meaning it is thoroughly protected against heavy rain and dust infiltration, making it ideal for balconies or patios. The system employs a unique V-shaped airflow design and thermal isolation plates to improve natural cooling, which keeps the system stable during heavy loads and extends its overall lifespan. Safety is paramount; the system continuously monitors the temperature of PV and grid terminals, instantly alerting you to any signs of overheating. Furthermore, it includes a built-in aerosol fire-suppression system that automatically activates if critical temperatures are reached, providing an invisible layer of protection.

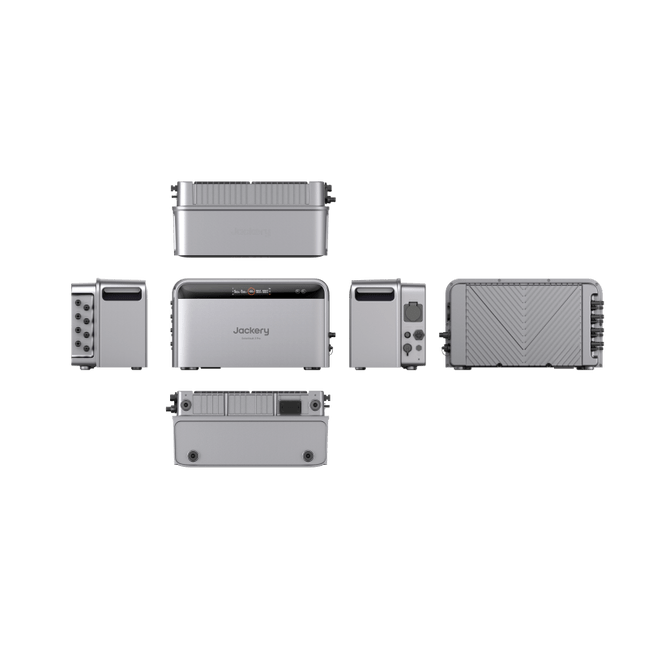

Size, Weight, and Portability
While traditional home storage batteries require massive wall-mounted racks and professional installers, the Jackery SolarVault 3 Pro is engineered as a compact, stackable, and modular block. Its footprint is comparable to a medium-sized travel suitcase, making it remarkably easy to place in tight balcony corners or small utility spaces. Because the system is modular, the base 2.52 kWh unit is manageable to move and set up for an average adult, and you can easily stack additional battery packs on top like building blocks as your energy needs grow.
Ease of Use
The entire system is designed around a true plug-and-play philosophy. Setup requires no complex rewiring or professional electrician fees for basic operation. Everything is managed through the intuitive Jackery App, which connects via Wi-Fi and Bluetooth. The app puts full control in the palm of your hand, allowing you to monitor real-time energy flow, battery state of charge, and solar generation statistics. You can seamlessly switch between various energy-saving modes or let the AI completely automate the process for maximum cost-efficiency.
Real-life Applications
The Jackery SolarVault 3 Pro is incredibly versatile. Here are some of the best ways to utilize it:
- Balcony Power Plants: Perfect for apartment renters who want to harvest solar energy and lower their monthly bills without permanent modifications to the building.
- Emergency Home Backup: Keeps refrigerators, Wi-Fi routers, and essential lighting running smoothly during unexpected grid failures or extreme weather events.
- Smart Home Integration: Pairs with dynamic energy tariffs to power your home during peak evening hours using stored energy gathered during cheap or sunny periods.
- Existing PV Upgrades: Acts as an add-on storage solution for households that already have a rooftop solar array but need a place to store surplus energy.
Compatibility
The Jackery SolarVault 3 Pro features broad compatibility to fit into your existing digital and physical ecosystem. It is compatible with most standard solar panels and microinverters on the market. On the software side, it integrates seamlessly with smart meters and third-party energy management platforms like Nordpool, Tibber, and Rabot. It also offers cloud integration for Shelly smart home devices, allowing you to create automated routines based on your solar production and home energy consumption.
What's in the Box
When you unbox your Jackery SolarVault 3 Pro, you will find the essentials needed to start your energy independence journey:
- 1x Jackery SolarVault 3 Pro Base Unit (Inverter with fixed 2.52 kWh LFP battery)
- 1x Comprehensive User Manual and Setup Guide
- Access to the Jackery Home App for installation and ongoing monitoring
Other Important Information
Built with premium LFP (Lithium Iron Phosphate) battery cells, the SolarVault 3 Pro guarantees a highly stable performance and an exceptionally long lifecycle. When paired with a smart meter, the system can monitor your real-time household energy consumption and adjust its output precisely to reduce your reliance on the grid to absolute zero when possible. Furthermore, the system is designed with seasonal expansion in mind; you can start with the base unit and simply add more battery packs during peak summer months to capture every drop of excess sunlight.
Ready to get your Jackery SolarVault 3 Pro?
Take control of your home's energy future with the Jackery SolarVault 3 Pro. Whether you want to reduce your monthly electricity bills, secure a reliable backup power source, or simply live a more sustainable lifestyle, this smart, modular system is engineered to adapt to your needs. With AI-driven tariff optimization, robust safety features, and a scalable design, it is the ultimate investment for the modern, eco-conscious household. Consider adding the Jackery SolarVault 3 Pro to your setup for an enhanced, worry-free energy experience.
