Description

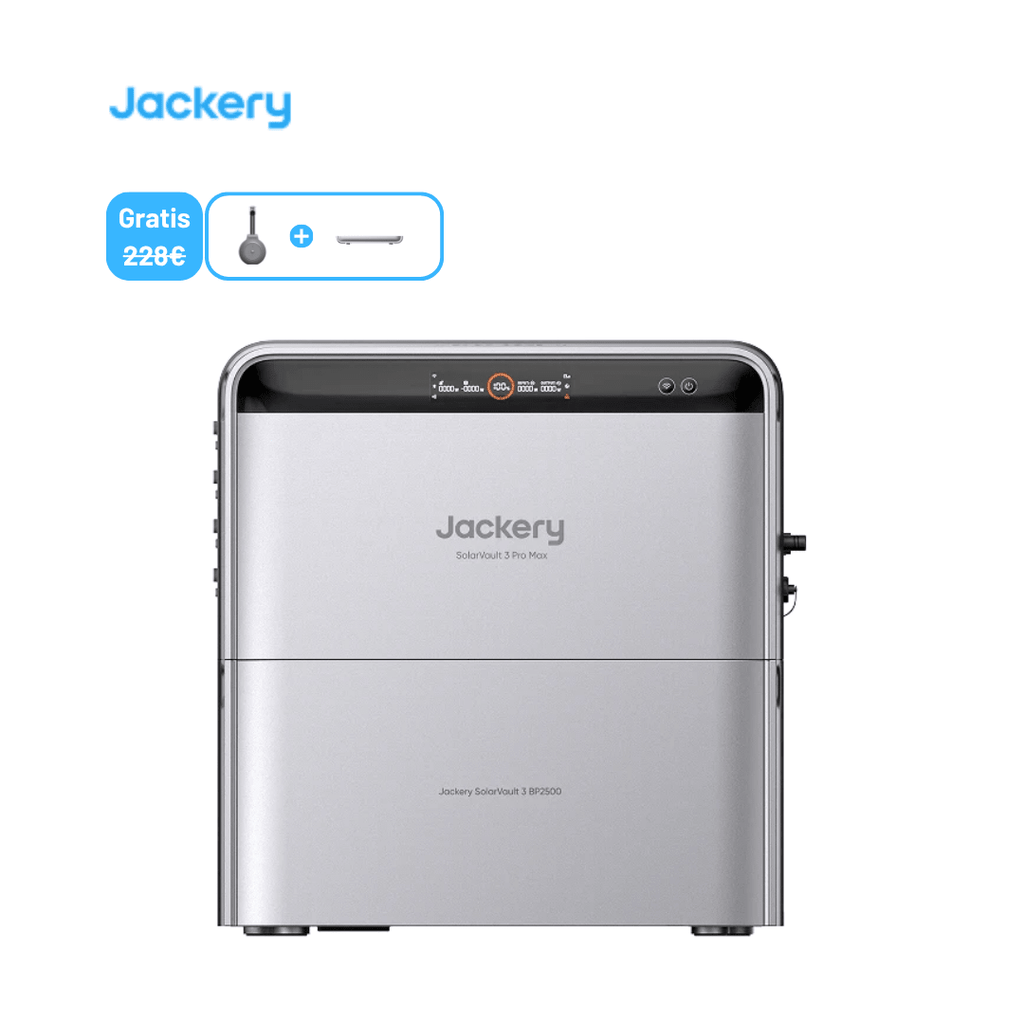

Overview of Jackery SolarVault 3 Pro Max + BP2500
The Jackery SolarVault 3 Pro Max + Jackery SolarVault 3 BP2500 bundle delivers a robust and intelligent home energy storage solution. Designed to maximize your solar self-consumption, this comprehensive system combines a high-capacity base station with an expansion battery, offering a total of 5.04 kWh of energy storage. Whether you are running a balcony power plant or integrating with an existing rooftop photovoltaic (PV) array, this plug-and-play solar storage system allows you to harness, store, and utilize renewable energy with unprecedented efficiency. By actively managing your power usage, it transforms your home into a smart, energy-independent hub.
Key Features & Technologies
-
Advanced AI Energy Management
The system utilizes an AI-driven energy management protocol that monitors real-time electricity tariffs. It automatically charges the battery when grid prices are lowest and discharges during peak hours, significantly reducing your electricity bills. -
Massive Solar Input Capacity
With a 4000W PV input and four independent MPPT trackers, the unit optimizes energy collection from multiple solar panel groups, even if they face different directions or experience partial shading. -
High-Power AC Output
The inverter supports a stable 2500W on-grid output and an impressive 3680W bypass power. This ensures the system can easily support heavy-duty household appliances simultaneously. -
Ultra-Fast Backup Power
In the event of a blackout, the system acts as an emergency supply, switching to battery power in under 20 milliseconds to ensure your critical devices remain uninterrupted. -
Premium Battery Chemistry
Equipped with robust LiFePO4 (LFP) cells, the batteries guarantee a long lifespan, enhanced safety, and consistent daily cycling without degradation.
Technical Specifications
| Total Capacity | 5.04 kWh (2.52 kWh Base + 2.52 kWh BP2500 Expansion) |
| Battery Cell Type | Lithium Iron Phosphate (LFP) |
| Max Solar Input | 4000W (4x MPPT Trackers) |
| AC Output (On-Grid) | 2500W |
| Bypass Power | 3680W |
| UPS Switchover Time | < 20 ms |
| Operating Temperature | -20°C to 55°C |
| Noise Level | ≤ 30 dB |
Design and Build Quality
The physical construction of the equipment is engineered for both durability and modern aesthetics. Featuring a weatherproof chassis with an IP65 rating, the system is fully protected against dust ingress and low-pressure water jets, making it suitable for both indoor and sheltered outdoor installations. To prevent overheating, the design incorporates a unique V-shaped airflow system and thermal isolation plates for optimal natural cooling. Safety is a major priority; the unit includes an integrated aerosol fire-suppression system and continuous terminal temperature monitoring to provide an invisible layer of protection against internal thermal risks.
Size and Weight
While packing massive power, the system is designed to be highly space-efficient for residential environments. The combined weight of the base unit and the BP2500 expansion battery is approximately 47 kg. To put this into perspective, the physical footprint is comparable to a standard under-counter beverage cooler or a medium-sized suitcase. This allows it to sit discreetly in a utility room, garage, or on a sturdy balcony. The stackable, modular design ensures that expanding your capacity does not require a sprawling setup, keeping your living space clean and organized.
Ease of Use
Despite its advanced capabilities, setting up and operating the system is incredibly straightforward. The AC-coupled inverter architecture allows for a seamless plug-and-play installation that integrates perfectly with your existing microinverters without the need for extensive structural rewiring. Everyday monitoring is handled via the intuitive Jackery Home App. Available via Wi-Fi and Bluetooth, the application provides real-time insights into your energy generation, consumption, and storage levels. You can easily configure energy-saving modes, view solar production forecasts, and track your financial savings all from your smartphone display.
Real-life Applications
-
Balcony Power Plants
Perfectly suited for apartment dwellers who want to store excess energy generated during the day for use at night, maximizing the return on investment of balcony solar panels. -
Home Energy Arbitrage
Take advantage of dynamic electricity pricing by storing cheap grid power overnight and running your home off the battery during expensive peak daytime hours. -
Emergency Home Backup
Keep your refrigerator running, lights on, and communication devices fully charged during unexpected neighborhood power grid failures or severe weather events. -
High-Load Appliance Support
With the massive continuous output, you can safely run demanding devices like portable air conditioners, electric water heaters, or power tools directly from your stored solar energy.
Compatibility
The system is universally designed to work alongside a vast array of home energy equipment. It features high compatibility with most standard rigid and flexible solar panels, as well as third-party microinverters currently on the market. Furthermore, it integrates flawlessly with smart energy meters and IR meter readers to detect excess solar generation instantly. The smart software also supports dynamic pricing structures from popular European electricity providers, ensuring maximum compatibility with modern grid infrastructures.

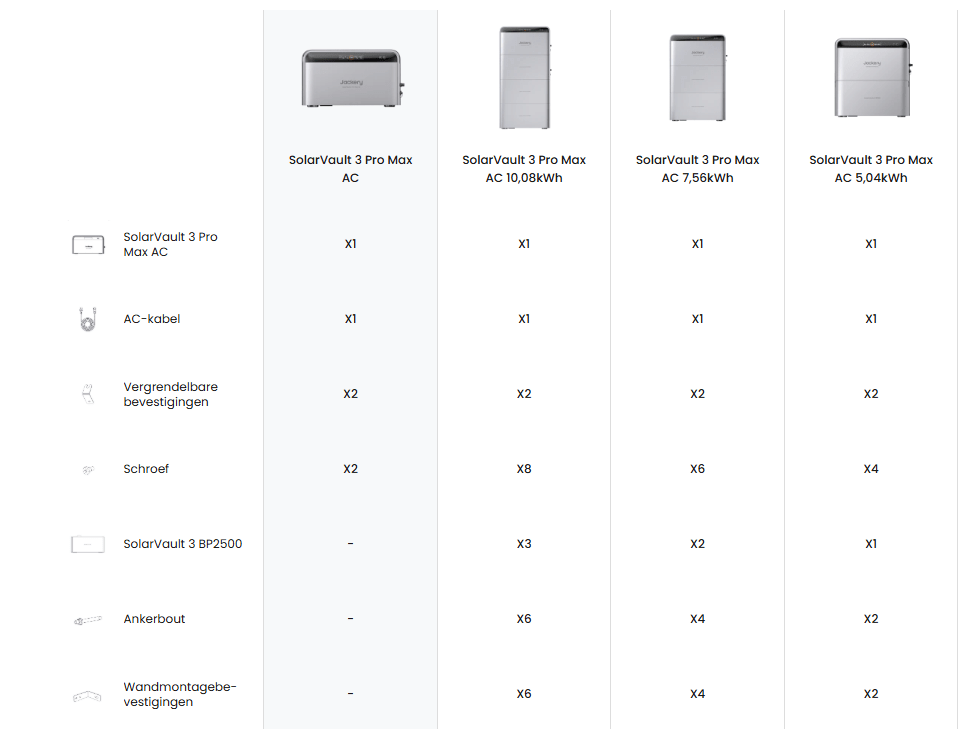

What's in the Box
- 1x Jackery SolarVault 3 Pro Max Base Station (2.52 kWh)
- 1x Jackery SolarVault 3 BP2500 Expansion Battery (2.52 kWh)
- 1x AC Power Cable for secure grid connection
- 1x Communication Cable for linking the units together
- 1x Standard User Manual and Warranty Guide
Important Information
- System Scalability: As your household energy needs grow, you can easily add up to a total of five BP2500 expansion batteries, bringing the maximum system capacity to an incredible 15.12 kWh.
- Automated Weather Alerts: The AI management system integrates with local meteorological data to proactively adapt charging behavior ahead of severe storms or heatwaves.
- Installation Location: While highly water-resistant, it is recommended to install the units away from direct, prolonged sunlight exposure to maximize battery longevity and cooling efficiency.
Ready to get your Jackery SolarVault 3 Pro Max + Jackery SolarVault 3 BP2500?
Taking control of your home energy consumption has never been more accessible or efficient. The combination of industry-leading PV input capability, modular expansion, and intelligent AI cost-saving software makes this bundle an essential upgrade for any modern household. By storing your own clean energy, you protect yourself against rising electricity costs and unexpected grid outages. Consider adding the Jackery SolarVault 3 Pro Max + BP2500 to your setup for an enhanced, resilient, and sustainable daily experience.
