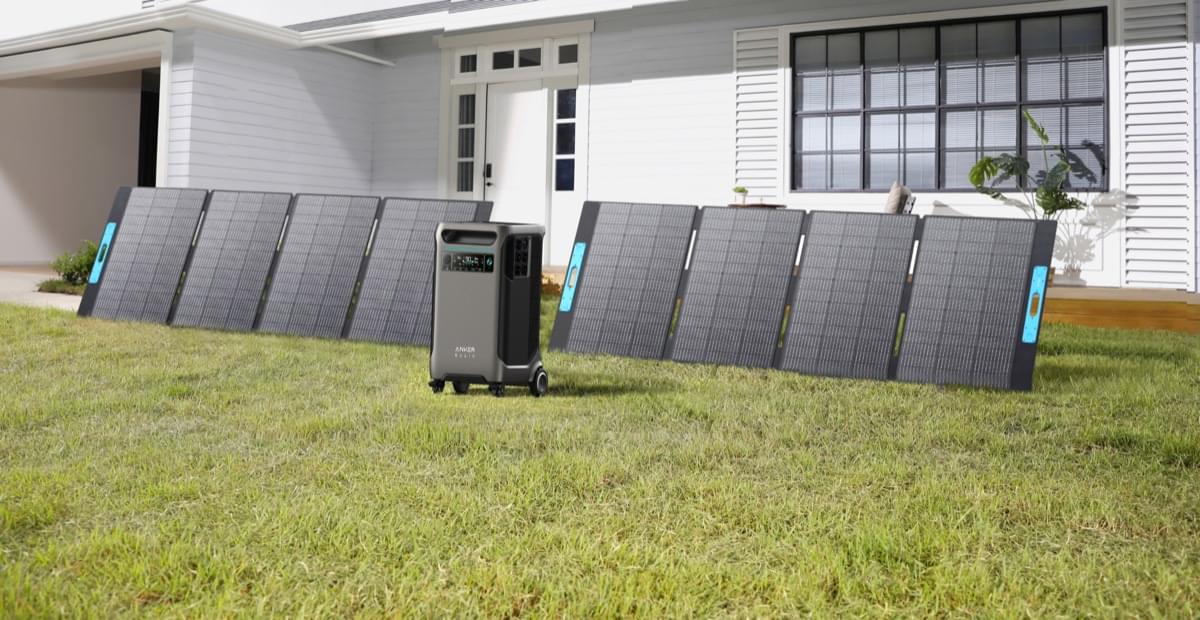

The Anker SOLIX F3800 is an absolute beast of a power station, and one of its standout features is the massive 2,400W maximum solar input. But how do you actually achieve that incredible charging speed? It’s not as simple as just plugging in any solar panel. Getting the setup right is key to unlocking the F3800’s full potential. In this comprehensive guide, we at TeqClub will break down everything you need to know—from series vs. parallel connections to the perfect panel configurations—to create the optimal solar charging array for your F3800. ⚡
1. Understanding the F3800’s Solar Powerhouse
Before we build our solar array, let's understand the technology inside the Anker SOLIX F3800. The magic lies in two key specifications:
- Maximum Solar Input: A whopping 2,400 watts. This allows the F3800 to recharge incredibly quickly using only the power of the sun.
- Dual MPPT Controllers: MPPT stands for Maximum Power Point Tracking. Think of these as two separate, highly intelligent solar charge controllers built into the unit. This dual system gives you immense flexibility. You can connect two separate solar arrays, which is perfect for setups with panels facing different directions or even using different types of panels (one set for each MPPT).
The most critical detail for our setup is the solar input voltage window: 60V to 145V DC. Your solar panel array's output voltage must fall within this range for the F3800 to accept a charge. If the voltage is too low (under 60V), it won't start charging. If it's too high (over 145V), you risk damaging the unit. Our entire strategy revolves around hitting this voltage sweet spot.
2. The Key to Speed: Series vs. Parallel Connections
To get your panel array's voltage into that 60V-145V window, you'll need to understand two basic wiring methods. This is the most important concept for maximizing your charging speed.
Series Connection
Connecting panels in series is like stacking batteries in a flashlight. You connect the positive (+) terminal of one panel to the negative (-) terminal of the next.
- Effect: Voltages add up, while the amperage (current) stays the same.
- Example: Three 45V / 10A panels in series would create a single array of 135V / 10A.
Parallel Connection
Connecting panels in parallel is like adding more lanes to a highway. You connect all the positive (+) terminals together and all the negative (-) terminals together using branch connectors.
- Effect: Amperage adds up, while the voltage stays the same.
- Example: Two 45V / 10A panels in parallel would create an array of 45V / 20A.
For the Anker SOLIX F3800, we will primarily use series connections to increase the voltage of our solar panel strings to get them into the required 60V-145V operational window.
3. Building Your High-Speed Solar Array: Good, Better, Best
Let's get practical. Here are some recommended configurations to help you get the most out of your F3800 solar charging setup. We'll use a common 400W solar panel with a typical open-circuit voltage (Voc) of around 48V as our example.
Good: A Powerful Starter Setup (1200W)
This setup uses one of the F3800's two MPPT inputs and delivers impressive charging speeds.
- Panels Needed: Three 400W solar panels.
- Connection: Connect all three panels in series.
- Calculation: 48V + 48V + 48V = 144V. This is perfectly within the 60V-145V range.
- Result: A 1200W array that will charge your F3800 efficiently. You still have the second MPPT input free for future expansion!
Better: The Max Speed Setup (2400W)
This is the ideal configuration to hit the F3800's maximum 2,400W solar input. It utilizes both MPPT controllers for peak performance. ☀️
- Panels Needed: Six 400W solar panels.
- Connection: Create two separate strings of three panels each. Connect the three panels in each string in series.
- Wiring: Plug String 1 into the F3800's first solar input (MPPT 1). Plug String 2 into the second solar input (MPPT 2).
- Calculation: Each string produces 144V. Since they are on separate MPPTs, the voltages don't combine.
- Result: A full 2,400W solar array capable of charging the Anker SOLIX F3800 at its absolute fastest advertised speed.
Best: The Flexible Max Speed Setup
The beauty of dual MPPTs is flexibility. Let's say you have a roof that faces east and west. You can mount three panels on the east side to catch the morning sun and three on the west to catch the afternoon sun. Connect the east array to MPPT 1 and the west array to MPPT 2. This setup still provides up to 2,400W but extends your charging window throughout the day, giving you a more consistent charge than a single, fixed array.
4. Common Mistakes to Avoid
When setting up your F3800 solar charging system, be sure to avoid these common pitfalls:
- Exceeding Max Voltage: NEVER create a series string where the combined Voc of the panels exceeds 145V. This can permanently damage the charge controller. Always check your panel's Voc on its spec sheet, especially in cold weather when voltage can be higher.
- Falling Below Minimum Voltage: A string of panels with a combined voltage below 60V will not activate the charger. For example, connecting just one 48V panel won't work.
- Mixing Panels in Series: Avoid mixing different brands or wattages of solar panels in the same series string. The entire string's performance will be limited by the weakest panel.
- Ignoring Shading: Even a small amount of shade on one panel can drastically reduce the output of the entire series string. Position your panels for maximum, unobstructed sunlight.
Your Path to Energy Independence
The Anker SOLIX F3800's 2,400W dual-MPPT solar input is a true game-changer for home backup and off-grid living. By understanding how to properly configure your solar panels in series to meet the 60V-145V requirement, you can unlock lightning-fast, free energy from the sun. This knowledge transforms your power station from a simple battery into the heart of a powerful and resilient home energy system.
Ready to build your ultimate solar generator? Find the Anker SOLIX F3800 and all the compatible solar panels you need right here at TeqClub. Have questions about your setup? Drop them in the comments below, and don't forget to share this guide with other F3800 owners!
